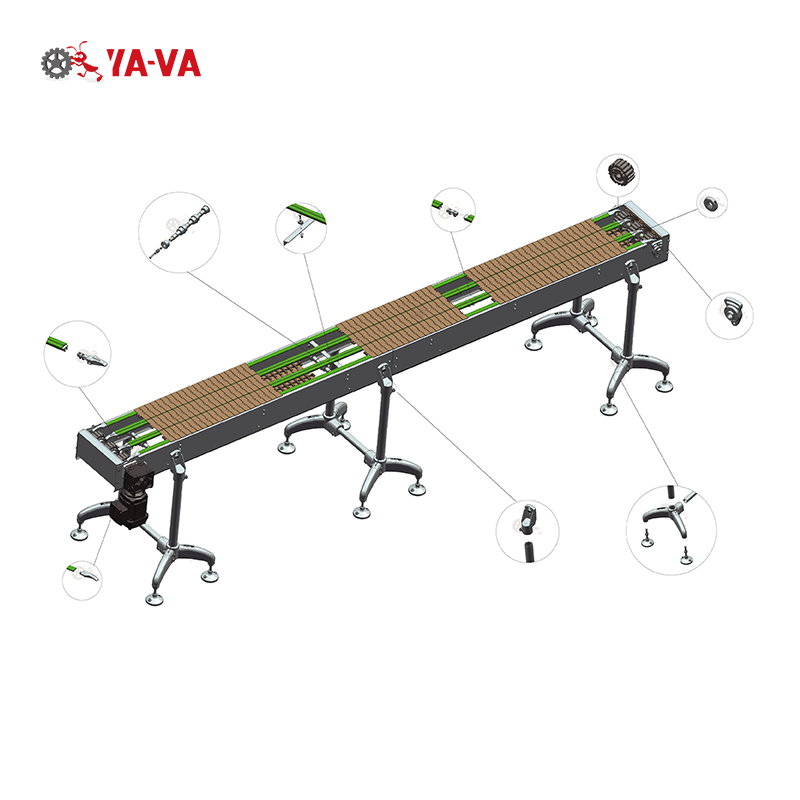

YA-VA Straight conveyor modular Belt Conveyor
Product Description
1. Key Specifications
- Available widths according customized
- Maximum load capacity: 80kg per square meter
- Operating speed range: customized
- Suitable for inclines up to 30 degrees (with cleats)
2. Belt Construction
- Made from durable polypropylene or polyethylene
- Modular design allows individual section replacement
- Standard pitch: 25.2/27.2/38.1/50.8mm
- Surface options include smooth, textured or perforated
3. Frame Components
- Main frame constructed from carbon steel or stainless steel
- Adjustable support legs (500-1200mm height)
- Heavy-duty cross members spaced every 500mm
- Optional side guides available in various heights
4. Drive System Components
- Electric motors ranging from 0.37kW to 5.5kW
- Gear reducers with ratios from 15:1 to 60:1
- Rubber-coated drive rollers (89mm or 114mm diameter)
- Manual or automatic belt tensioning systems
Features of Plastic Modular belt conveyor
5. Special Configurations
- Sanitary models with radius corners
- Washdown-ready versions available
- Can incorporate curves up to 30 degrees
- Compatible with various accessories (brushes, air knives)
6. Performance Features
- Self-tracking rollers maintain belt alignment
- Low noise operation (under 68 decibels)
- Energy efficient design
- Easy maintenance with tool-free adjustments
7. Industry Applications

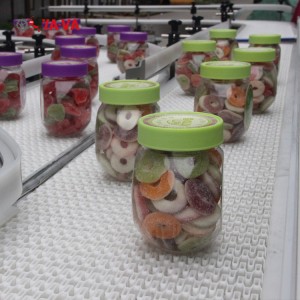

- Food processing plants
- Packaging operations
- Manufacturing facilities
- Material handling centers
8.Product Benefits
- Long service life
- Reduced energy requirements
- Environmentally friendly materials
- Quick installation
9. Compliance Information
- Meets CE safety standards
- Food-grade models comply with FDA regulations
- Electrical components UL listed
- Meets environmental regulations
These conveyors provide reliable performance for continuous operation in demanding industrial environments. The modular design simplifies maintenance by enabling replacement of individual belt sections rather than requiring full belt changes. Various configurations are available to meet specific application requirements.
