Spiral Conveyor Systems For Packaging Industry

In-Depth Application Scenarios in the Packaging Value Chain

To fully appreciate the versatility of spiral conveyor systems, it is essential to examine their integration across different stages of the packaging process. From primary product handling to tertiary palletizing, spiral systems play a key role in maintaining continuous line flow.

1. Primary Packaging: Handling Delicate and Unstable Containers

In industries such as cosmetics, beverages, and pharmaceuticals, primary packaging involves handling lightweight, fragile, and often unstable products like glass vials, PET bottles, and small cartons. Standard vertical lifts can cause these items to tip over, leading to spills, line stoppages, and product waste. Spiral conveyors equipped with high-friction side-gripper chains or flat-top modular belts provide smooth, continuous, and gentle vertical transport. Because the product does not slide on the belt, it maintains its orientation throughout the entire elevation change, making it ideal for feeding high-speed filling and capping machines.

2. Secondary Packaging: Case Packing, Shrink Wrapping, and Labeling

Once products are filled and sealed, they proceed to secondary packaging, where they are grouped into cases, trays, or shrink-wrapped bundles. Spiral conveyors are commonly used here to transport these larger, heavier packages to overhead transport lines. This overhead path carries the packages across the factory floor to the palletizing area, keeping the ground level clear for forklift traffic and operator movement. The ability of spiral conveyors to handle varying product sizes simultaneously without changeovers makes them highly valuable for contract packagers running multiple product lines.

3. Dynamic Accumulation and Buffer Zones

One of the most innovative applications of spiral conveyors in the packaging industry is vertical accumulation. If a downstream machine, such as a labeler or case packer, experiences a temporary stoppage, upstream machines (like blow molders or fillers) cannot simply be shut down immediately without causing major operational issues. A spiral accumulator acts as a buffer zone, storing products vertically on the spiral path while the downstream issue is resolved. Once the line is clear, the spiral slowly releases the accumulated products back into the main line, preventing unplanned downtime and keeping the core production machinery running continuously.

Key Technology Trends Shaping the Future of Spiral Conveyors

As the packaging industry transitions toward Industry 4.0, spiral conveyor systems are evolving to become smarter, more efficient, and highly adaptable. Several key technological trends are driving this evolution:

1. Advanced Materials and Food-Grade Hygiene

In food and beverage packaging, sanitation is paramount. Modern spiral conveyors utilize FDA-approved, washdown-resistant materials such as stainless steel structures and specialized plastic modular belts. These materials resist bacterial growth, withstand harsh chemical cleaning agents, and allow for open-frame designs that facilitate easy inspection and cleaning. This minimizes the risk of cross-contamination and ensures compliance with strict hygiene regulations.

2. Energy Efficiency and Low-Friction Drives

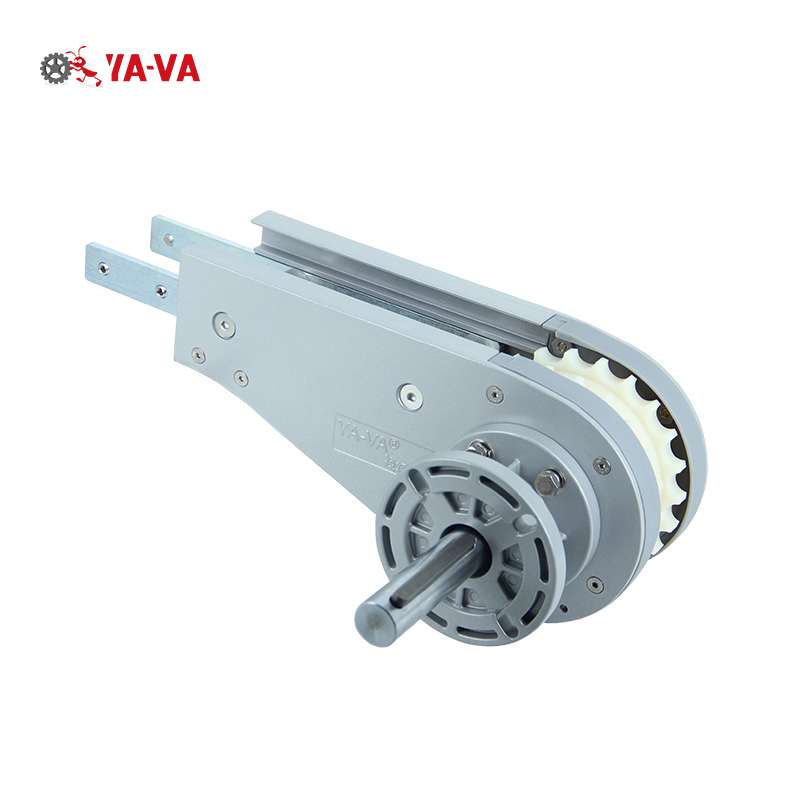

Traditional vertical transport systems, like industrial elevators, consume significant amounts of power. Modern spiral conveyors are engineered with low-friction plastic modular chains and high-efficiency direct-drive gearmotors. By reducing friction between the belt and the guide rails, these systems require less power to operate, resulting in lower energy costs and a reduced carbon footprint for packaging plants. Additionally, direct-drive technology eliminates the need for complex chain transmissions, reducing wear and tear.

3. Smart Sensors and Predictive Maintenance

Unplanned downtime is one of the most significant costs in packaging operations. To counter this, modern spiral conveyors are increasingly integrated with smart sensors that monitor critical operational parameters in real time. These include belt tension, motor temperature, vibration levels, and speed fluctuations. By analyzing this data, maintenance teams can identify potential wear on sprockets, bearings, or chains before a failure occurs. This predictive maintenance approach extends equipment life and ensures continuous, reliable operation.

4. High-Speed and Variable Throughput Capabilities

Modern packaging lines must handle variable production speeds depending on the product run. Spiral conveyors equipped with variable frequency drives (VFDs) can dynamically match their speed with upstream packaging machinery. Whether the line is running at high speeds for small beverage bottles or slower speeds for heavy cartons, the spiral system adapts instantly, preventing product pile-ups and ensuring smooth transitions between different sections of the line.

5. Modular and Reconfigurable Designs

Manufacturing requirements can change rapidly, requiring changes to factory layouts. Modular spiral conveyors are designed to be easily reconfigured or relocated. The modular frame sections and chain links can be added, removed, or adjusted to accommodate new heights, entry and exit angles, or directional changes. This flexibility protects the manufacturer's investment and allows the conveyor system to evolve alongside the business.
